Euro Energy distributes active clay barrier systems engineered for highly secure and self-sealing containment. By utilizing the natural expansion properties of premium sodium bentonite bound between durable geotextile layers, our GCL series delivers outstanding hydraulic protection for waste containment, municipal landfills, mining ponds, and infrastructure works.

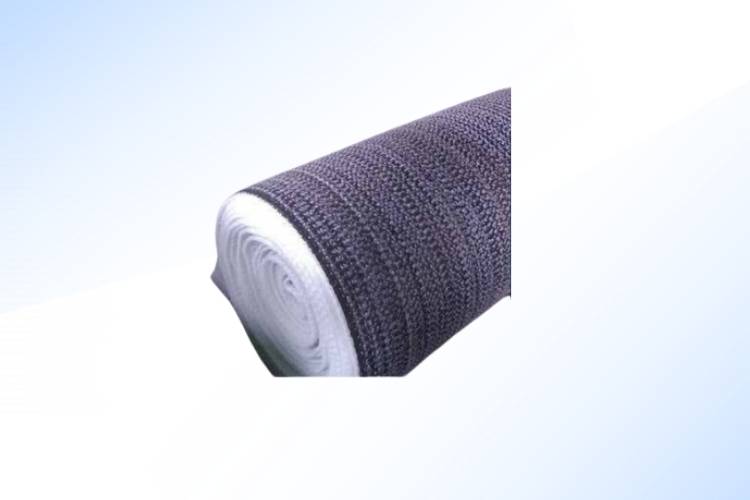

Tinhy GCL is filled with high–expansion sodium bentonite between the woven and non–woven fabric. The upper non–woven fabric is used to lock the bentonite to the lower composite woven fabric through a special knitting method, so that the bentonite particles cannot flow in any direction. When water is encountered, a uniform high–density rubber head water layer is formed in the mat to seal, isolate, and prevent leakage.
ASTM, JG/T
Width: 6m
Weight: 4000–8000g/m²
Landfill Liners and Caps, Protection Layer of a Hazardous Waste Site, Water Reservoirs and Canals, Wetland Restoration, Roadway and Railway Construction, Erosion Control, Mining Applications, Foundation Barriers.
This product combines the robust impermeability of a high–density polyethylene (HDPE) membrane with the natural sealing properties of bentonite clay, creating a formidable barrier against water and contaminants.
ASTM, JG/T
Width: 6m
Weight: 4000–8000g/m²
GCL with an added membrane layer are both used in containment and barrier applications, with the key difference being the membrane's enhanced impermeability and durability, making them ideal for more demanding applications such as high–pressure water environments, contaminated site remediation, and critical infrastructure protection.

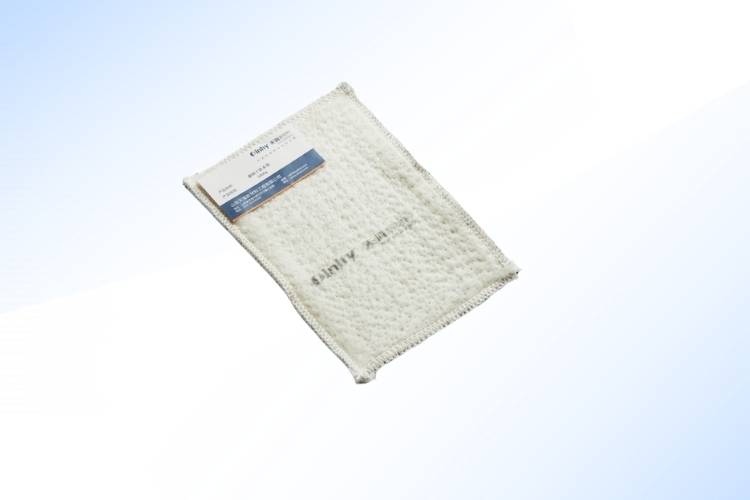

Tinhy's double–locking edges GCL innovatively builds upon the standard GCL design by incorporating two slits at the junction of two GCL pieces. When exposed to water, the bentonite in the GCL automatically precipitates, forming a seal at the joint. This design with two blocking lines significantly enhances the waterproofing effectiveness of the splice, providing a more reliable and efficient barrier in various applications.
ASTM, JG/T
Width: 6m
Weight: 4000–8000g/m²
GCL with double–locking edges is specifically designed for enhanced waterproofing in applications such as landfill liners and containment areas, where it forms a self–sealing, reinforced barrier at the joints for superior protection against leakage.
